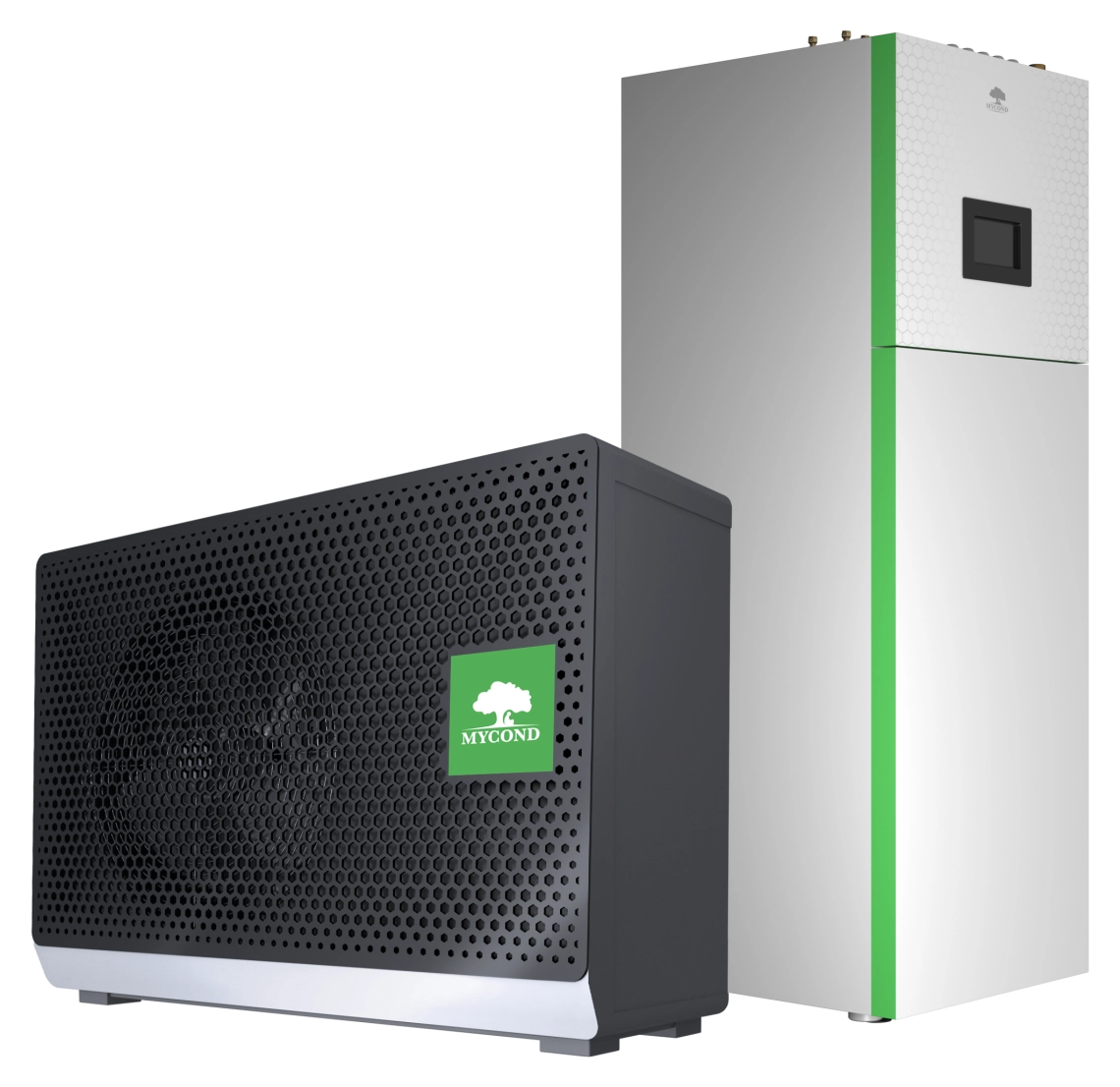

Split heat pumps BeeSmart All-in-One series

Efficient and reliable heat pump of the BeeSmart All-in-One series of split type with heating capacity 9,2 / 11,6 / 15,3 / 18,5kW (A7/W35) for heating, cooling and domestic hot water. The heat pump controller with a touch screen ensures weather-dependent heating/cooling operation of the entire system based on the outdoor air temperature, comfortable hot water supply, as well as control over an auxiliary heat source. With the support of remote control via the smartphone, the entire system is extremely easy and convenient to operate.

Mycond BeeSmart All-in-One has a high SCOP factor and works efficiently in a wide range of outdoor temperatures. The compact design of the indoor unit with a built-in hot water tank and other components of the hydraulic circuit easily solves the problem of installing the equipment in a limited space.

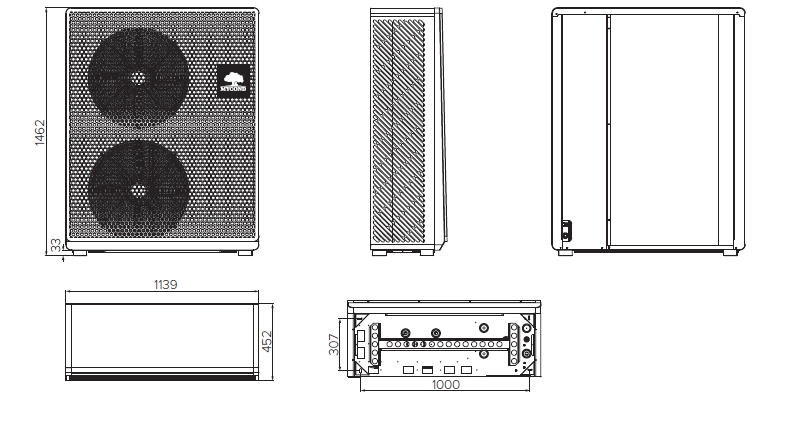

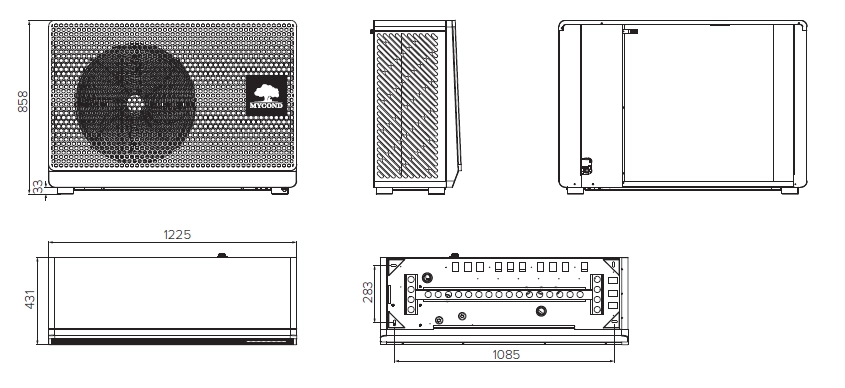

Outdoor unit

• Heating capacity 9,2 / 11,6 / 15,3 / 18,5kW (A7/W35)
• Heating operation at outdoor temperature down to -25 °C
• Cooling capacity 7,2 / 8,3 / 13,0 / 15,8kW (A35/W7)
• Adjustable capacity thanks to the inverter compressor Mitsubishi
• Power saving variable speed fan
• Low noise level of the outdoor unit
• Coated evaporator with corrugated fins for higher efficiency
• 4-way diverter valve
• Electronic expansion valve (EEV)
• Refrigerant R32
• Ribbon heater, as frost protection for the outdoor unit condensate pan

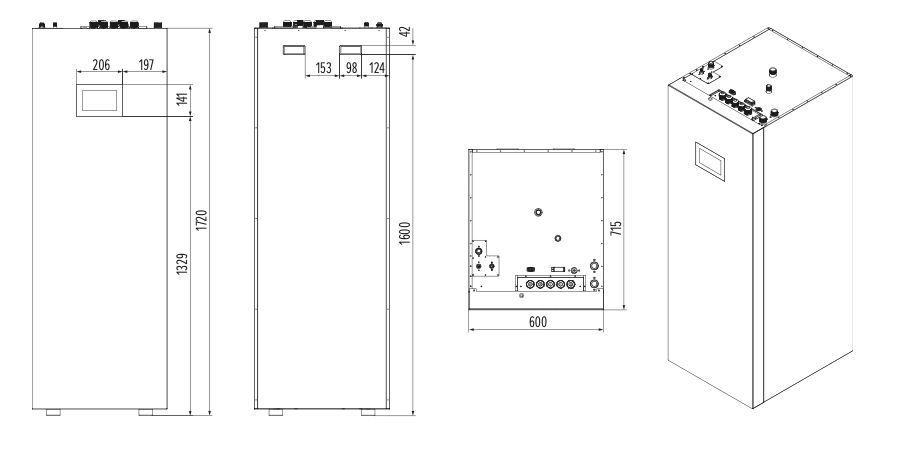

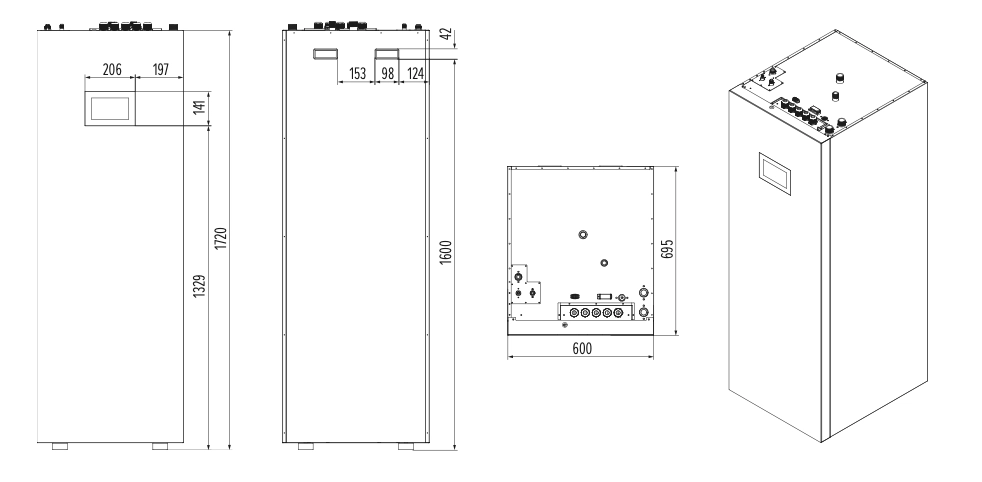

Indoor unit

Built-in components:

• Stainless steel hot water tank, 250 l
• 3-way valve for heating/DHW
• Electric heater 9 kW
• Safety valve
• Expansion tank, 5 l
• Touch-scree color controller with weather-compensation mode
• Flow switch

Control system

With a 7" touch screen operation panel, EcoTouch can combine various heating equipment, to optimize the energy consumption of the entire system as a whole.

Its sophisticated control logic smartly manages the system components and allows the integration with other common control systems to satisfy the complex demands of various applications, for highly efficient operation while minimizing the power consumption.

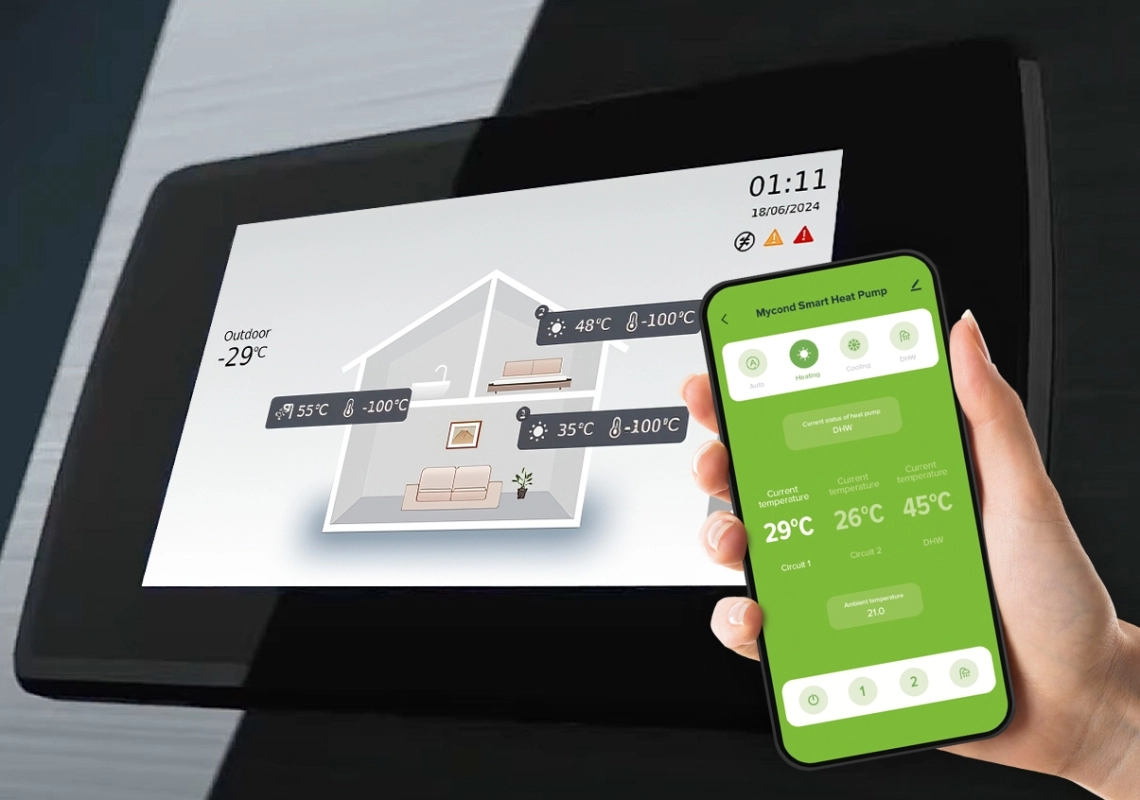

Additionally, with the Wi-Fi module, it can work remotely with Mycond App via smartphone.

Main Functions:

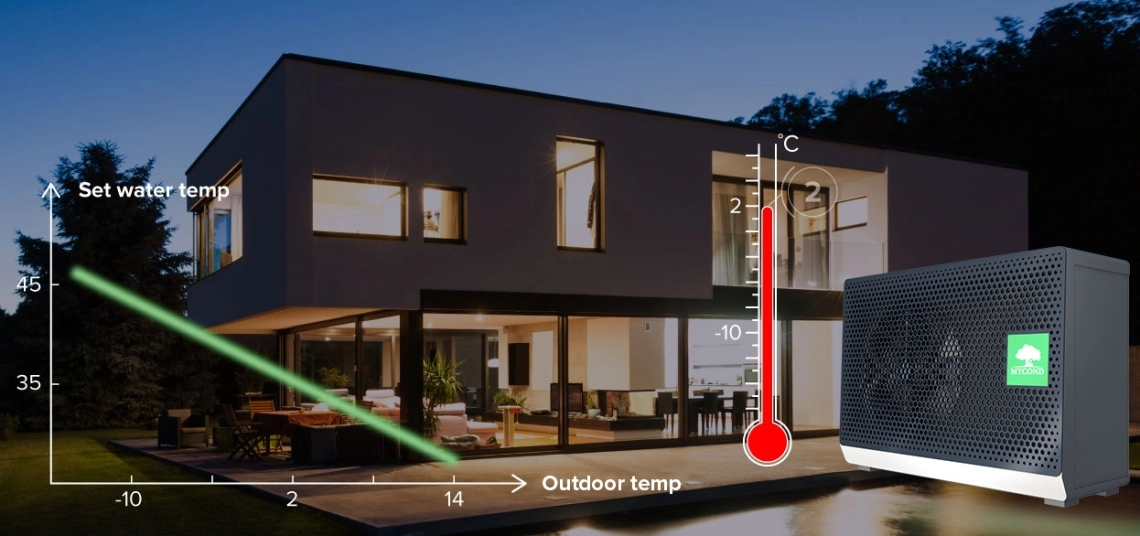

Heating Curve Function

Using Smart’s proprietary Heating Curve Logic, users can set up the system to meet their optimum comfort levels based on the changing heat demand, insulation levels, etc.
BeeSmart system can adjust the outlet water temperatures based on the ambient temperature, by continually monitoring and adjusting it in opposite direction with the current ambient temperature levels to ensure the optimum in the living spaces.

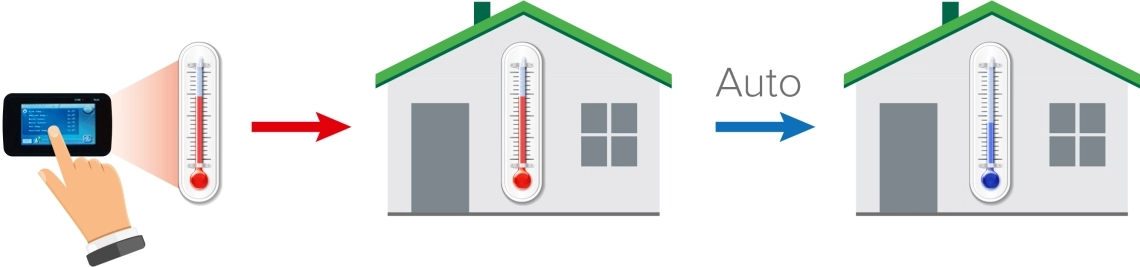

Room Temperature Control Function

In addition to the water temperature control function, users can also choose to control the heating water temperatures, by setting it on their controller pads based on the room temperature.

In this mode heat pump will manage the outlet water temperature and work towards achieving and maintaining the set room temperature.

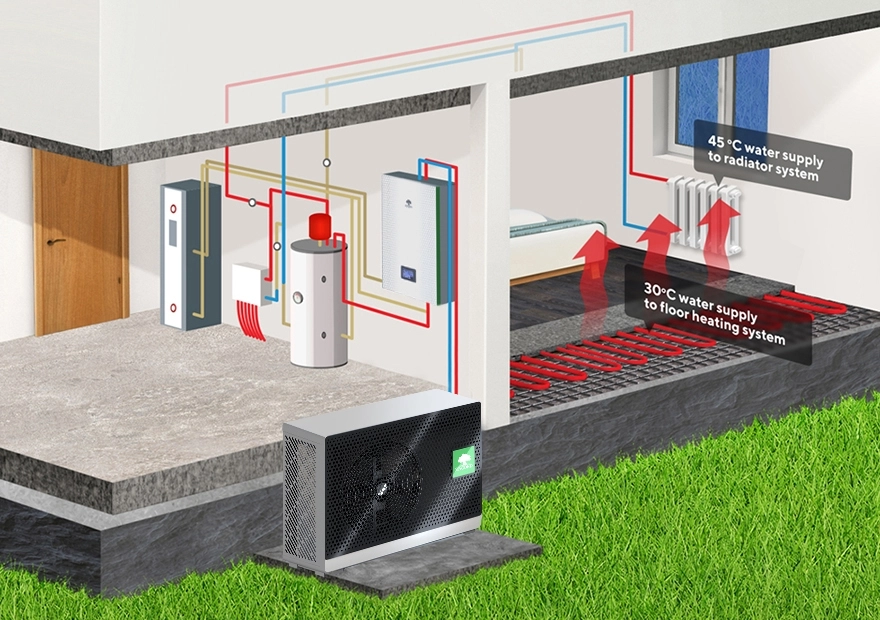

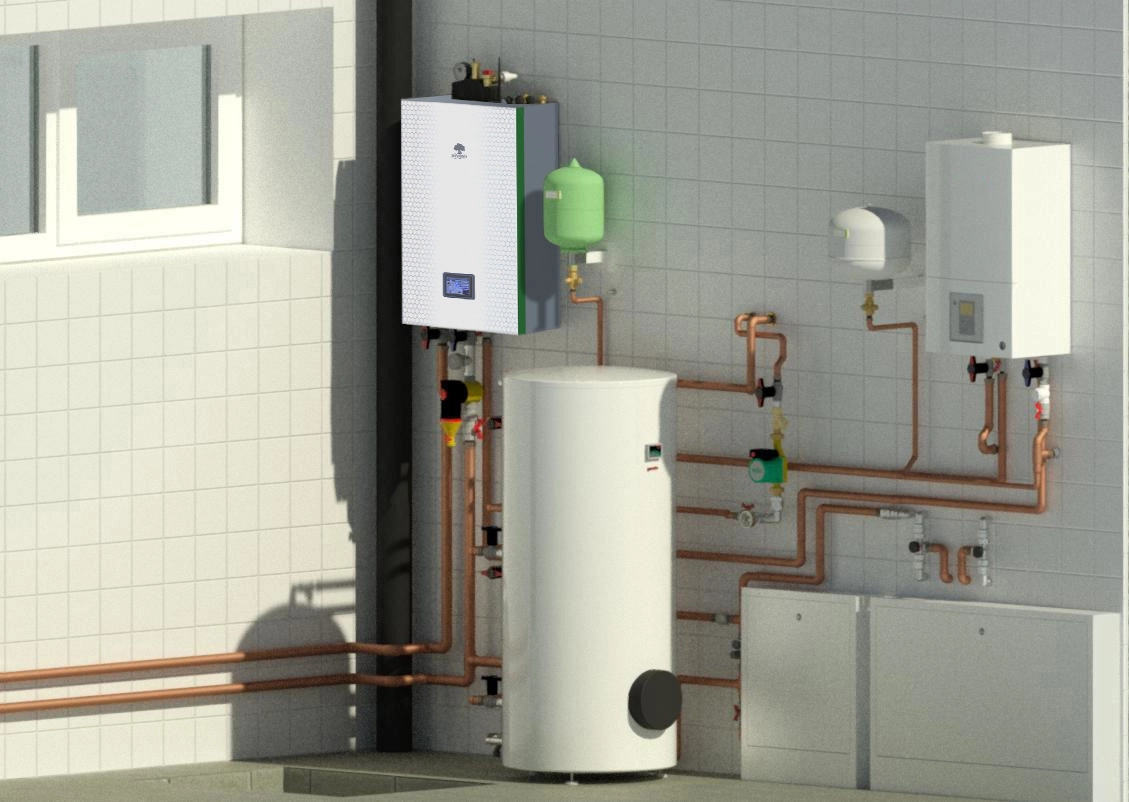

Controlling two independent heating circuits with a mixing valves

Different heating systems require differing levels of water temperatures, such as the case with floor heating systems and radiator heating systems. BeeSmart system provides the users with the ability to set up two separate heat curve programs, for different water temperatures.
A low temperature curve for floor heating and a high temperature curve for the radiators. When high temperature water is required, BeeSmart runs a high-heat-demanding curve.

When high temperature water is no longer needed or after it is reached, the unit automatically switches to low-heat-demanding curve operation with lower water set temperatures for a more economical and energy-saving operation.

Auto Heat/Cool Switch-over Mode

BeeSmart unit have Automatic Heat/Cool Switch-over function to enable the user a truly unattended automatic operation of the system. Users can choose to set this mode to function based on the ambient temperature, room temperature or a signal input from other external devices.

Sleep Mode

In this mode BeeSmart system adjust outlet water temperature or room temperature to save energy and lowers the operation noise by reducing the working speed of the compressor and fan motor for optimum sleeping comfort.

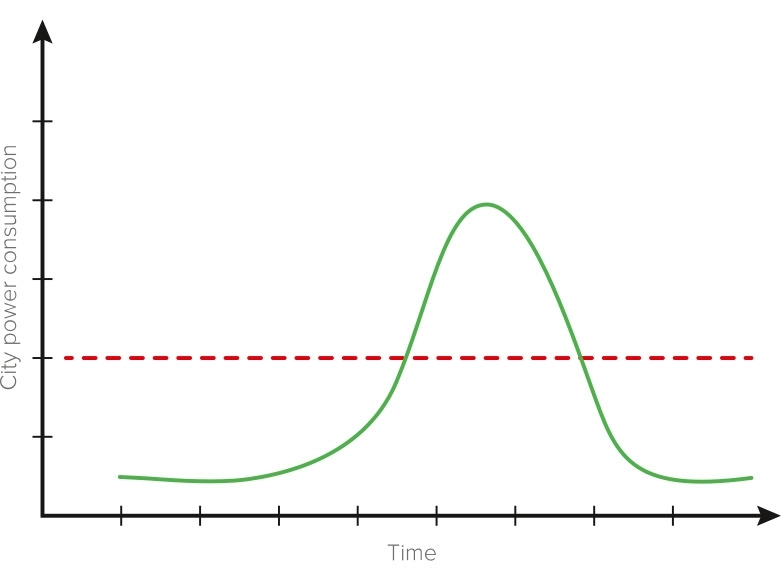

Smart Grid Ready function and blocking of operation from the energy supply company

In some countries or regions power companies encourage people to use less power at peak time by adjusting their pricing for consumed power based on the certain times of the day, called the peak timing.

BeeSmart system has the ability to receive the related signals from the power company and adjust its operation or even or and adjust or even stop its operation upon receiving the signal.
When this function is activated, the user can set up the operation of the water pump and the control signal to other heating sources, like gas boilers. This function is an excellent tool for maximized energy savings.

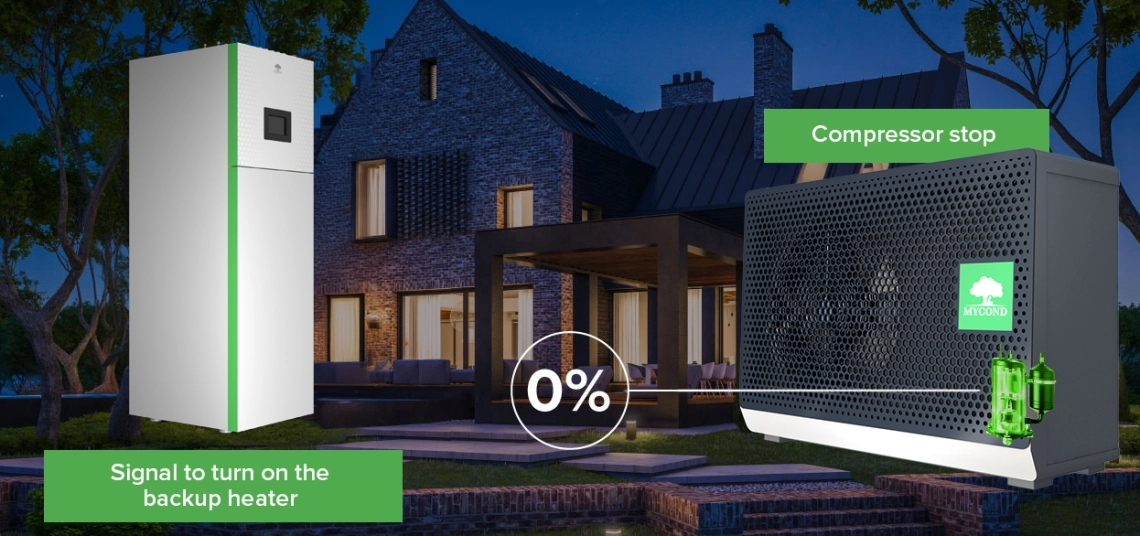

Economical Operation

As the ambient temperature drops, the heating efficiency of heat pumps drops along. In some countries or regions, when ambient temperature drops to a certain level, usage of other heating sources, like a gas boiler, may become more economical than the use of the heat pump.

BeeSmart unit allows the user to stop running the heat pump and turn on other heating sources, when the ambient
temperature drops to a certain level.

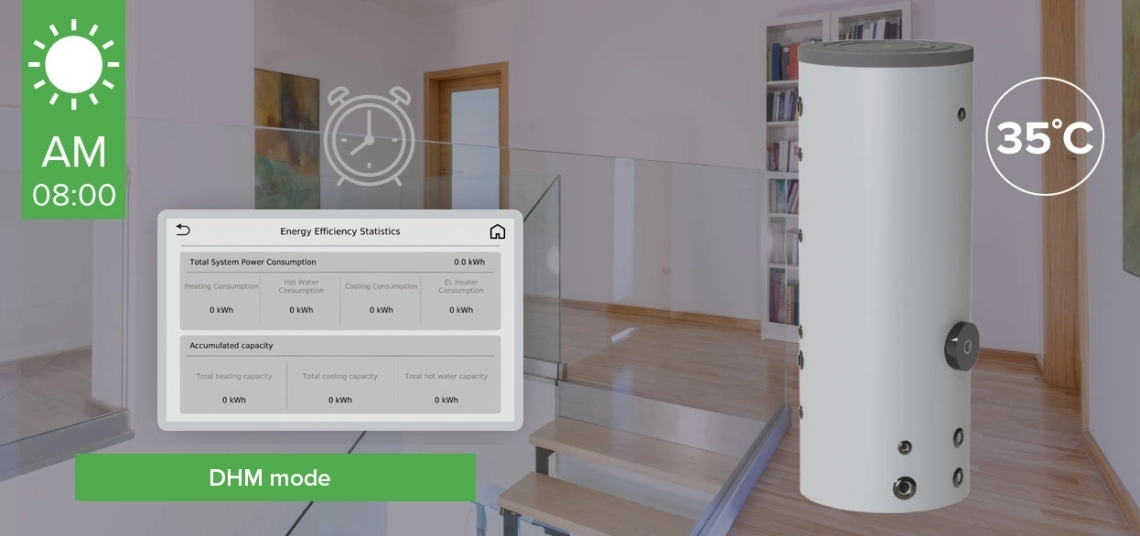

Energy monitoring

You have the opportunity to view data on the efficiency of the heat pump in different operation modes (heating, hot water, cooling) in real time or for any previous period of time.

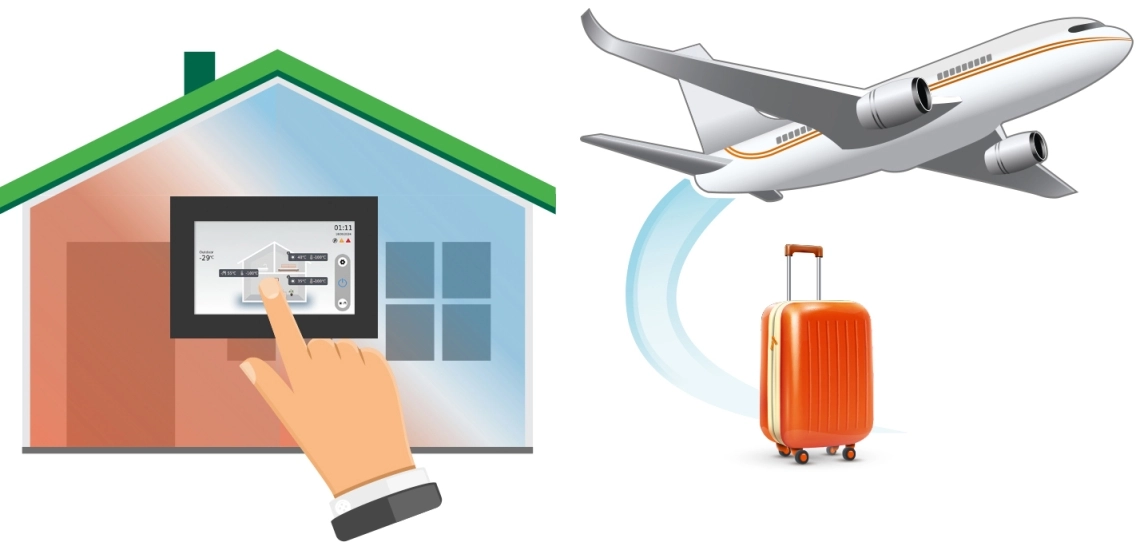

Vacation Mode

Built-in Vacation Mode allows the users to set the system to operate under minimized vacation settings between the programmed starting and ending time of their vacation periods. In this mode BeeSmart works to maintain the minimal required temperatures to save the maximum amount of energy.

System will switch back to normal mode at the ending time of vacation mode properly, so that the users will be welcomed with proper heating temperature and domestic hot water upon returning from their vacations.

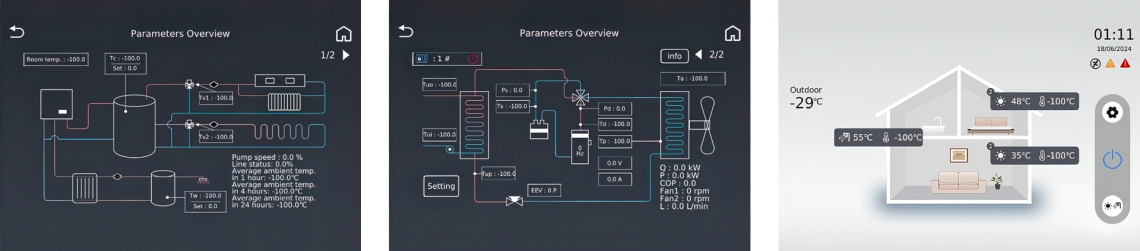

Unit Working Status Display

Installer and the user can view the real-time operation status of the unit, like working voltage/current, water flow, unit capacity, COP, temperatures readings, system high and low pressures, etc.

Easy Integration of external appliances

Mycond BeeSmart system allows the connection of other external appliances. The control system is integrated with standard Modbus, which can react to 0-10V signals from other appliances.

Software Update

BeeSmart unit is equipped with a USB port for any future software updates and improvements.

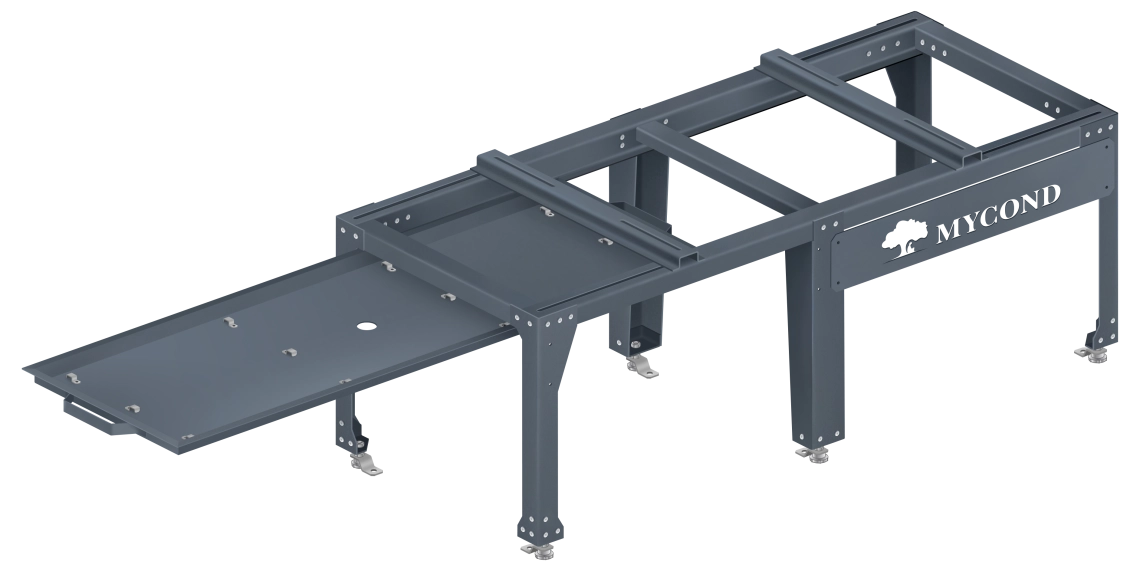

Frame with tray for outdoor unit

• Overall dimensions: 1200W x 500D x 440H (mm).
• Installation width is adjustable from 580 to 1120 mm.
• Color - RAL 7024
• Height adjustable feet.
• Tray with drainage hole.
• Not supplied with an electric heating cable.

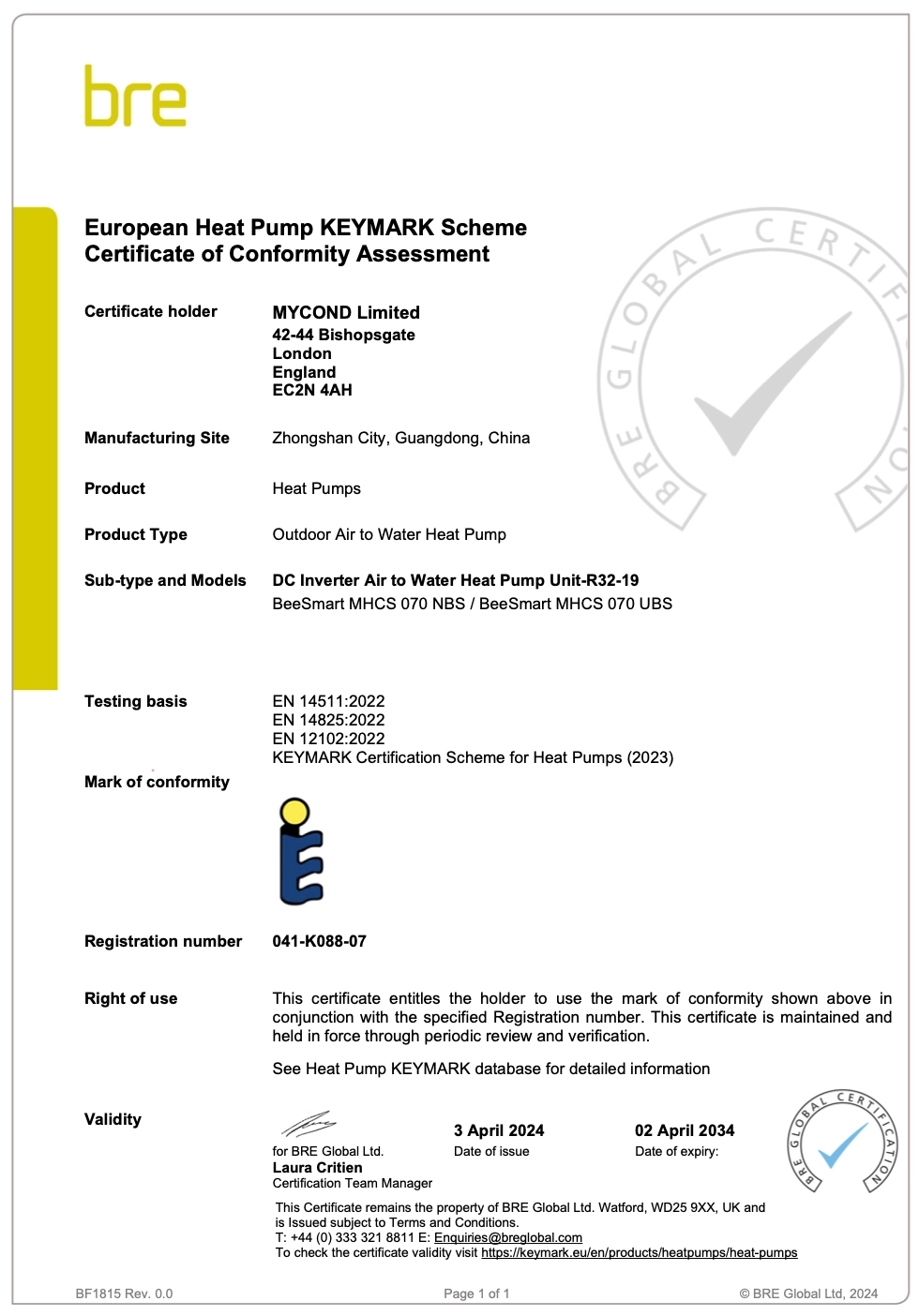

MYCOND CERTIFIED ACCORDING TO THE HEAT PUMP KEYMARK STANDARD

The Heat Pump Keymark certification is an internationally recognized quality mark that certifies that Mycond heat pumps meet the highest European and international standards for efficiency, reliability and environmental friendliness. This certification is based on independent tests and inspections that ensure that heat pumps with this quality mark meet the declared technical characteristics and are efficient in use.

The Heat Pump Keymark was developed by the heat pump industry in 2015 but is owned by the CEN. The scheme is open to all certification bodies in Europe.
