Mycond Inverter Pro MCU-065YHDD

The Mycond Inverter Pro series of heat pumps, with an innovative inverter compressor, offers high efficiency and reliability, even at different outdoor temperatures. The unit features smaller dimensions, making installation easier and reducing the space required. It provides stable water production at +55 degrees and operates efficiently all year round

Cooling capacity: up to 60 kW

Heating capacity: up to 65 kW

Want to buy or have questions?

High Efficiency

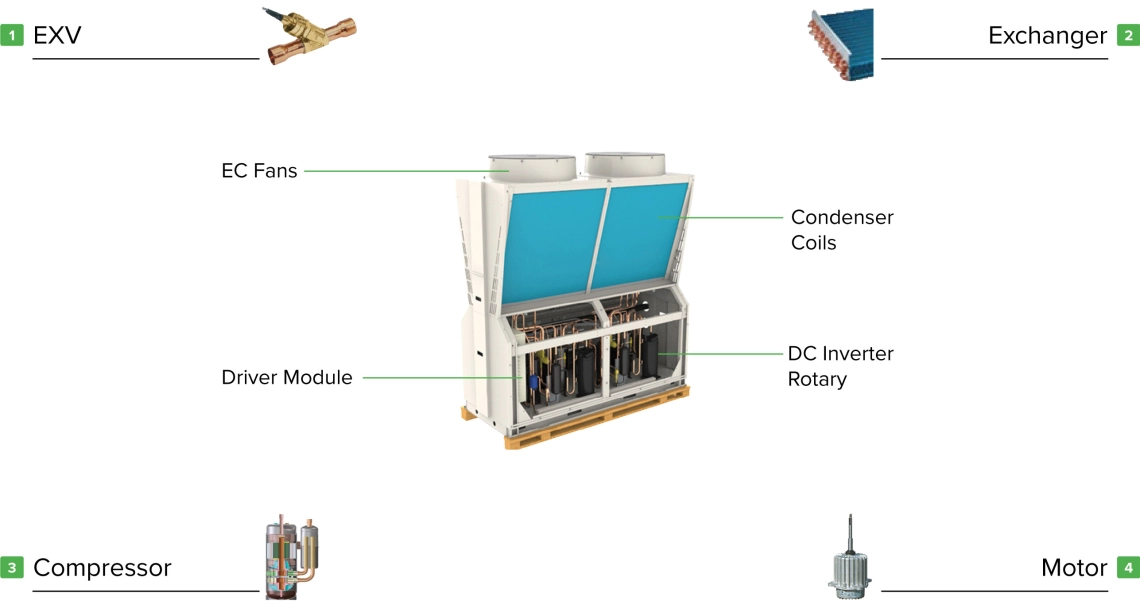

Mycond Pro MCU-065YHDD High-performance inverter with rotary compressor and motor.

The unit adopts full DC inverter rotary compressor, driven by high-efficiency permanent magnet DC motor to improve the energy efficiency greatly. The high-efficiency oil supply and oil separation parts ensure the low friction, low noise, stable and reliable operation of the compressor.
Low sound power level EC fans, together with high efficiency DC inverter motor, greatly reducing the power consumption. Special 0-91Hz stepless variable frequency speed regulation ensures the stable and reliable operation of the unit.

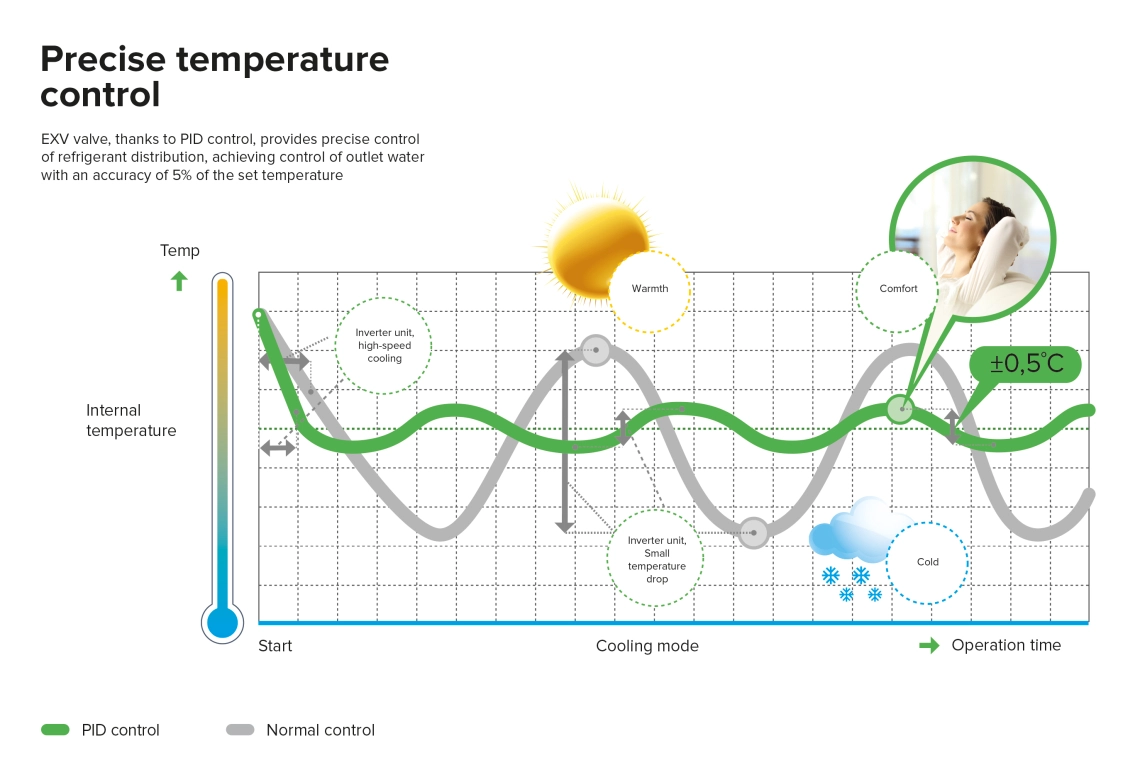

EXV will control the liquid refrigerant spraying into the evaporator precisely.
‘V’ shape condenser, enlarging the heat exchanging area by 5%.

Easy Installation

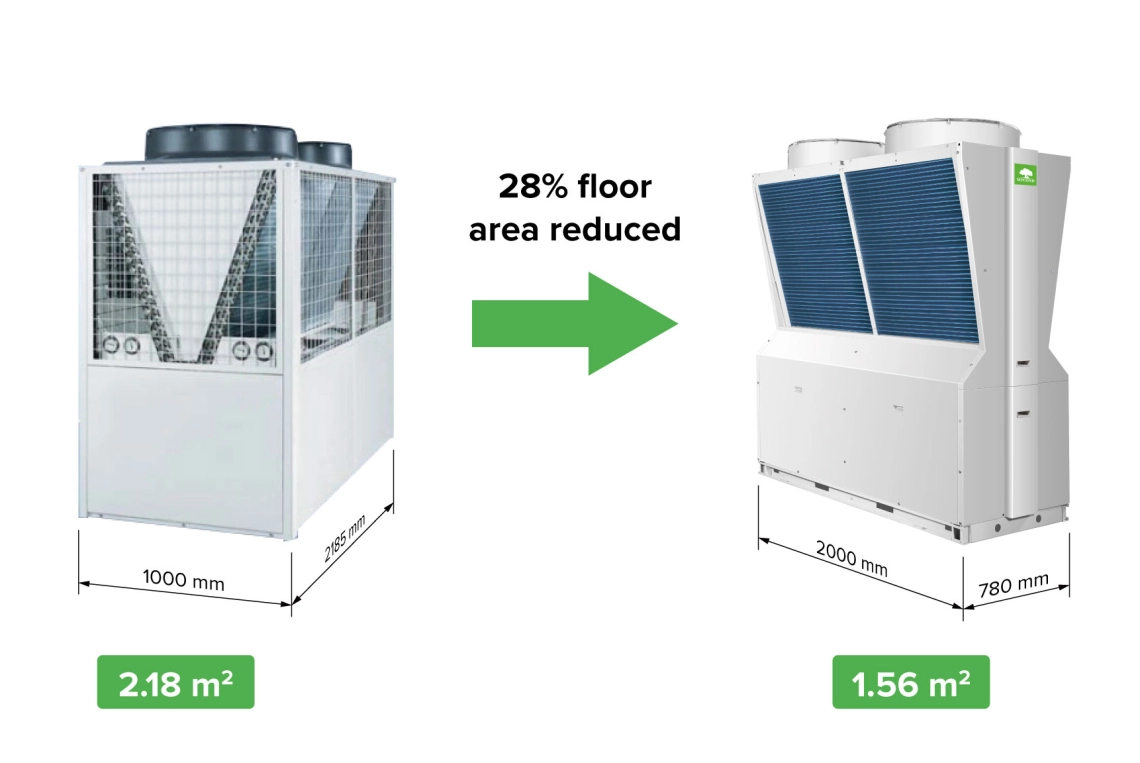

Compact design, small footprint Y' shape design, small floor area, only 1.^56m2, 28% footprint can be reduced.

Compact Mycond Inverter Pro MCU-065YHDD with Y shape design for efficient energy use and easy installation.

Quick start

With new inverter technology, quick start within 5s, maintain ultra high frequency operation within 1 hour to ensure the room temperature can reach the set temperature as soon as possible.

Mycond Pro MCU-065YHDD Innovative inverter technology for efficient cooling and heating.

Modular design, flexible combination

The unit adopts modular design, and max. 16 modules can be combined in each group, which can meet the load demand of different buildings. The combination can be "full inverter units solution" or "inverter units and fixed speed units solution".

Full inverter units solution
( Inverter unit(main module)+N×inverter units(auxiliary modules) )
Inverter units and fixed speed units solution
( Inverter unit(main module)+N×fixed speed units(auxiliary modules) )

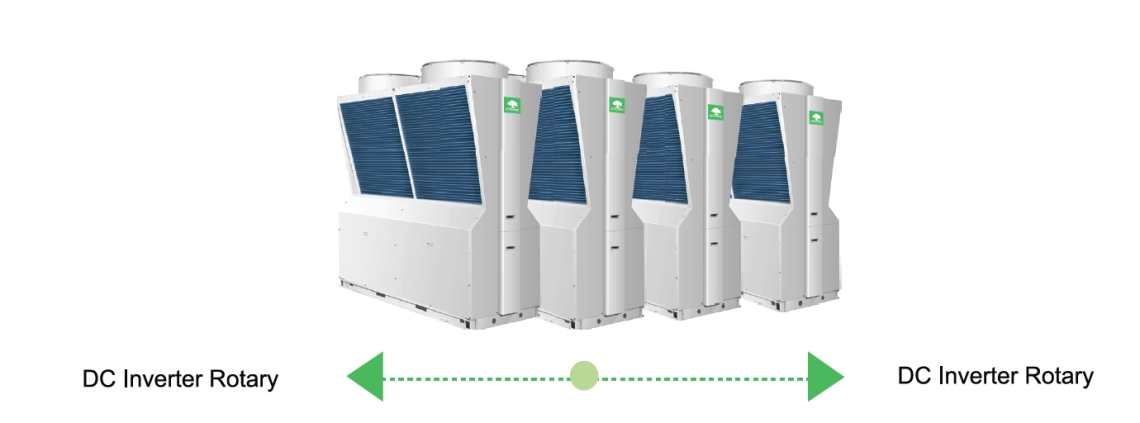

Mycond Pro MCU-065YHDD Modular design for flexible HVAC combinations.

Mycond Inverter Pro MCU-065YHDD with advanced DC inverter compressor for high efficiency.

Specifications		Units	MCU-065YHDD
	Cooling capacity	kW	60
Cooling (A35/W7)	Power consumption	kW	20
	Operating current	A	38
	Heating capacity	kW	65
Heating (A7/W45)	Power consumption	kW	19,4
	Operating current	A	36.8
EER			3,00
COP			3,35
Maximum power consumption		kW	31,6
Maximum operating current		A	60
Power supply			3N-/380V/50Hz/60Hz
Refrigerant type			Electronic Expansion Valve
Capacity control			Stepless
	Type		Rotary
Compressor	Quantity		2
	Power consumption	kW	9,5×2
Refrigerant	Type		R410a
	Loading	kg	6×2
	Type		Internally grooved copper tube with hydrophilized aluminum fins
Air heat exchanger	Fan power	kW	0,8×2
	Ventilator type		Axial fan
	Number of fans		2
	Type		Shell and tube heat exchanger
Water heat exchanger	Rated water flow	^m3/h	10,32
	Inlet/outlet pipe		R2 ^,,
	Water contamination ratio	^m2.°C/kW	0,018
	Standard pressure	Mpa	1,0
	Water resistance	kPa	45
Sound power level		dB(A)	65
	Unit weight	kg	700
Weight	Gross weight	kg	715

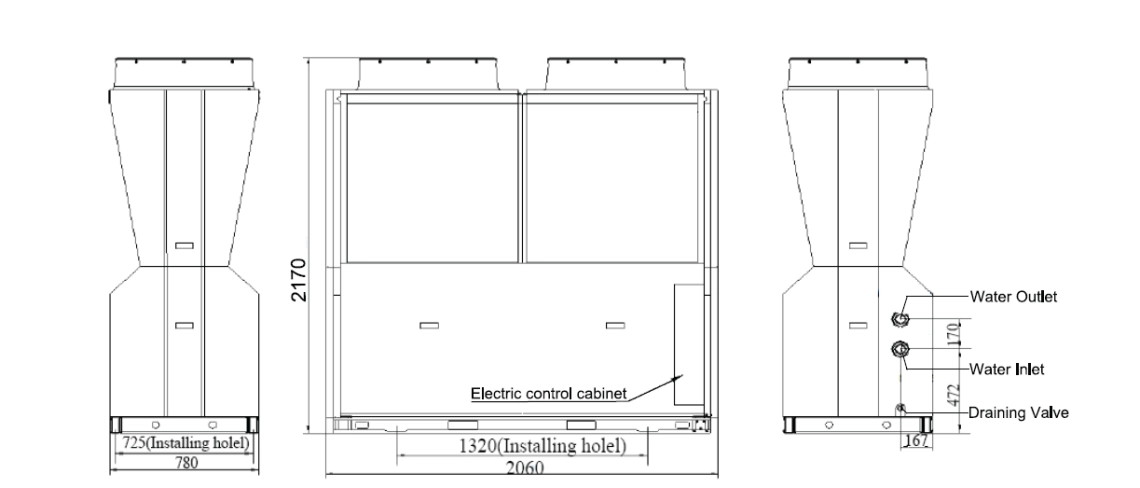

Dimensions

MCU050YHT

Diagram of the Mycond Inverter Pro MCU-065YHDD dimensions.
