Hydro box

Mycond hydro unit makes it possible to use VRF systems to provide users with comfortable air conditioner, hot water heating and domestic hot water. This solution is suitable for both residential area and commercial area, such as residences, office buildings, hotels, hospitals, etc.

Cooling capacity: 7 ... 28 kW

Heating capacity: 9 ... 31 kW

Want to buy or have questions?

Key features:

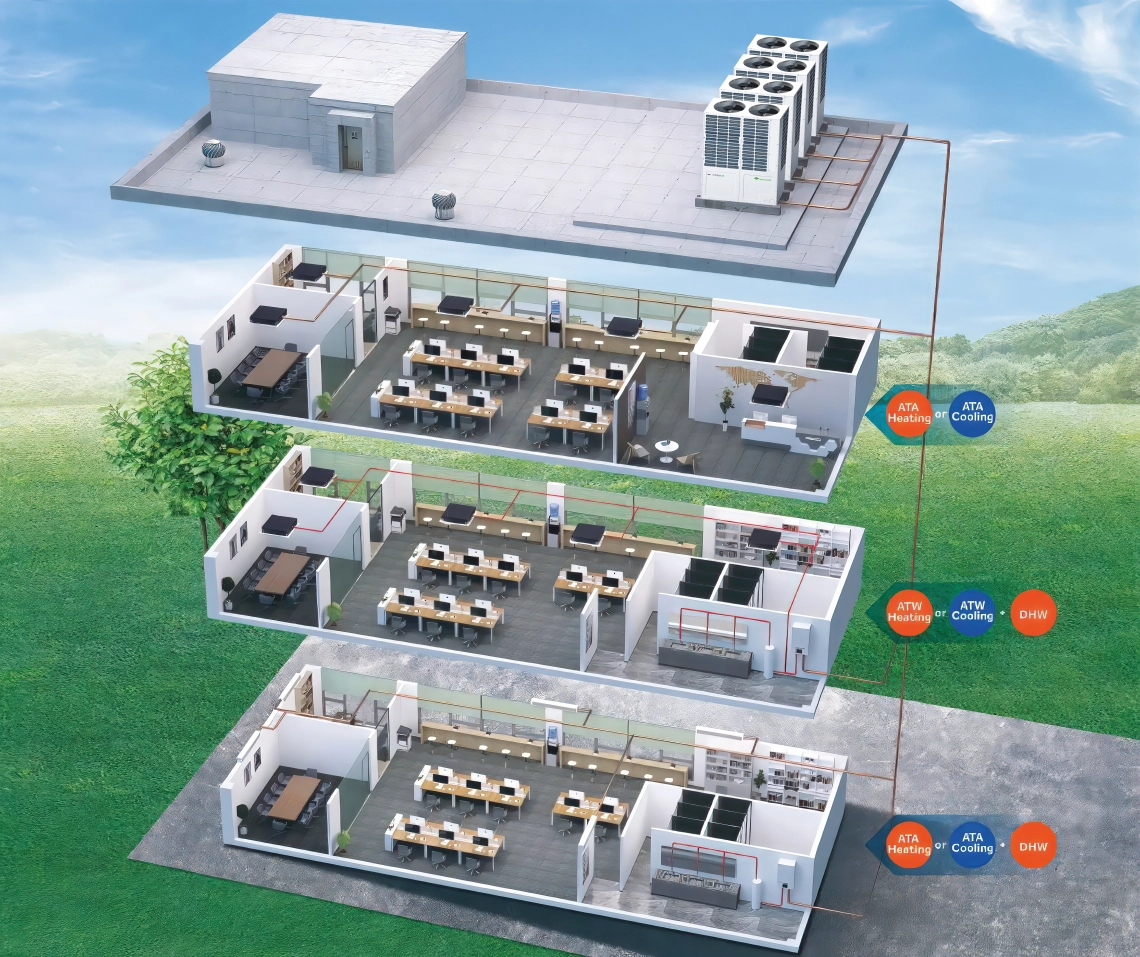

Integrated solutions (ATA, ATW, DHW) In one system
Stylish appearance
Water outlet temperature up to 50ºC.
Multiple modules combination for bigger capacity demand
Wall-Mounted type saving space
Connectable to MRF S
Easy maintenance due to patented design

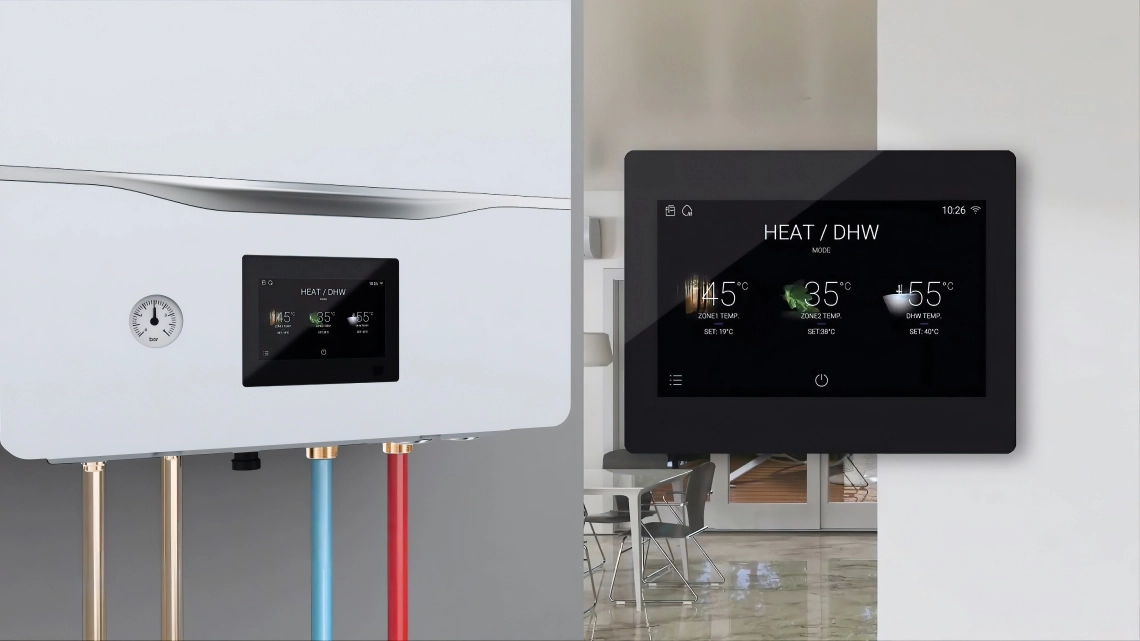

MyCond Hydro box touch control panel

Easy control

5-inch colorful controller with full touch screen.

Complete hydraulic components

The indoor unit consists of the following main components: Pump (except 96 size), expansion tank (except 96 size), plate heat exchanger, safety group, differential pressure switch, water gauge, water filter.

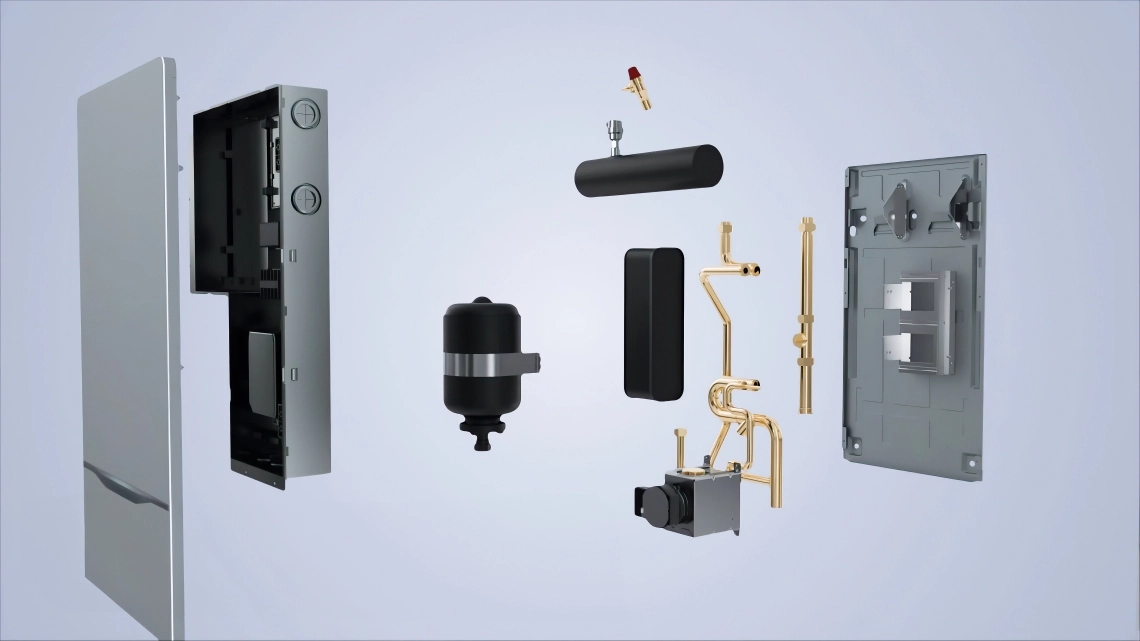

MyCond Hydro box design of internal components

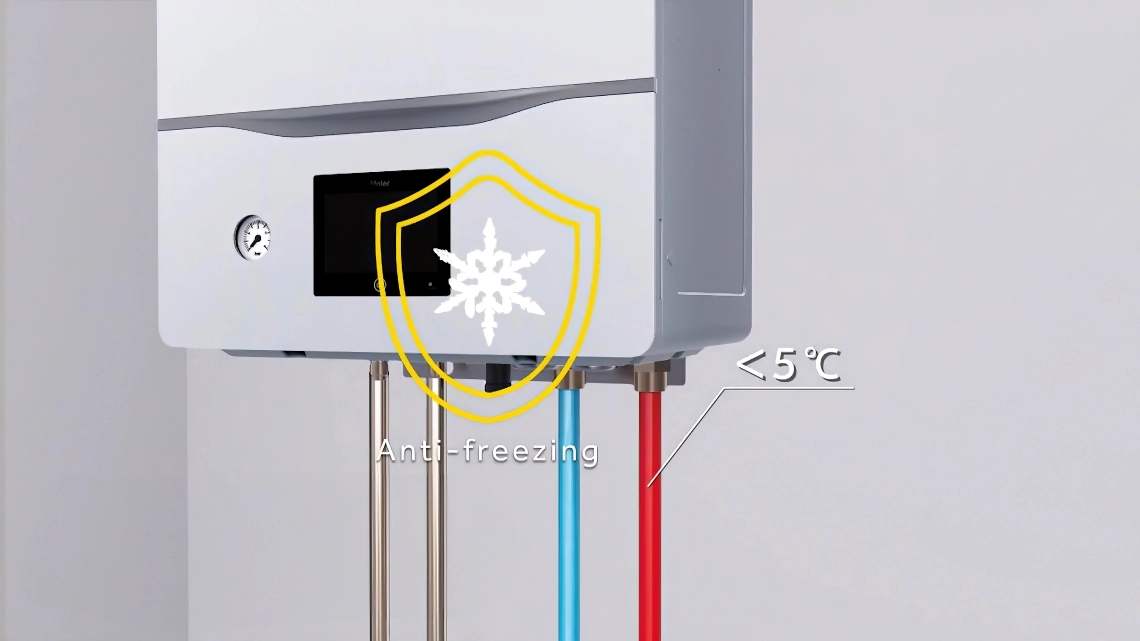

MyCond Hydro box frost protection

Anti-freeze function

Protect hydraulic parts from damage.

Circulation for frost protection

When the temperature drops to a certain level, indicating the potential for frost or ice formation, the anti-freeze function is activated.

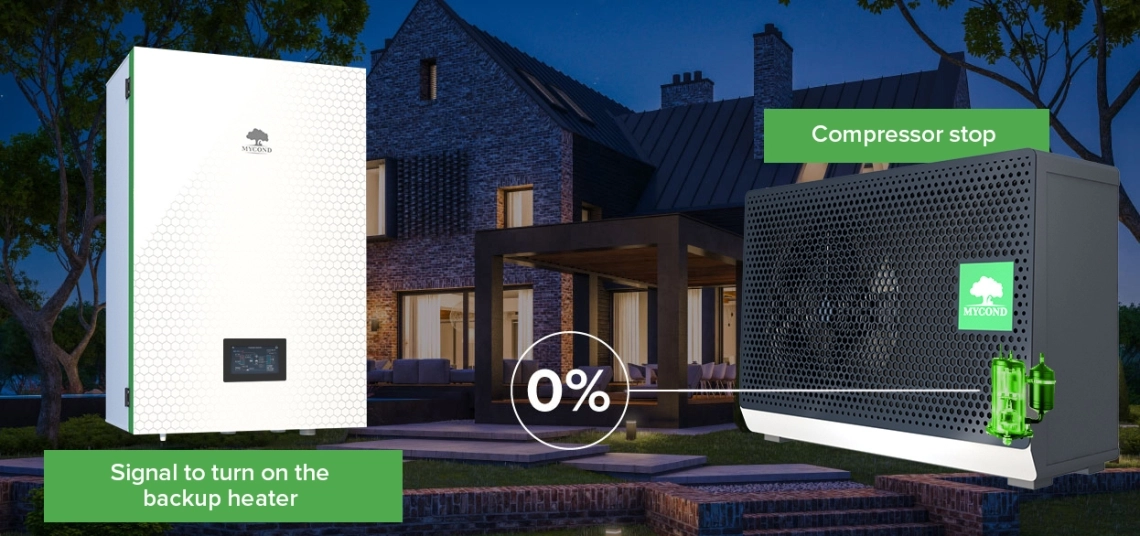

MyCond Hydro box circulation for frost protection

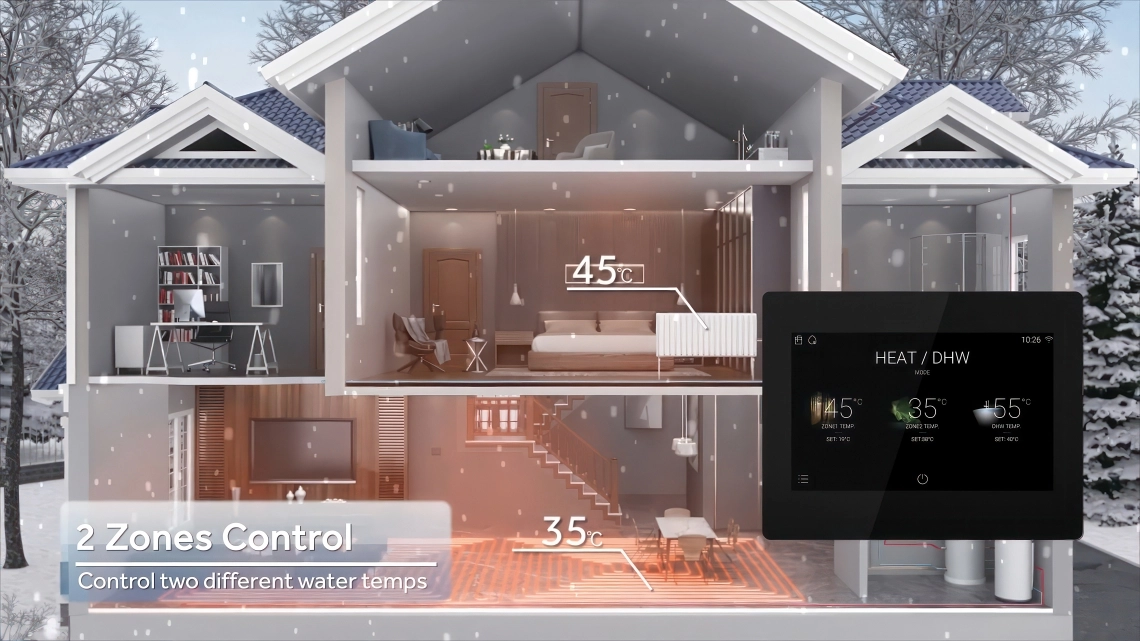

MyCond Hydro box two separate circuits with different requirements

Control of two separate circuits for rooms with different requirements

MyCond Hydro box heating, cooling and DHW system for a business center

Model/Indoor unit		Units	MHUW-24X1EV2AD	MHUW-48X1EV2AD	MHUW-96X1EV2AN
	Cooling (1)	kW	7	14	28
Nominal Capacity	Heating (2)		9	16	31
Dimensions Unit	H /W / D		850/ 480 / 310	850/ 480 / 310	850/ 480 / 310
Weight Unit		kW	56	56	52
Installation Place	Indoor/outdoor		Indoor	Indoor	Indoor
	Only hydro module	%	80-100%	80-100%	80-100%
	Hydro box+IDUs	%	Total 50-130% (Hydro box 0-80%)
Cooling Ambient	Min. - Max.		10~43	10~43	10~43
Cooling Water Side	Min. - Max.	°C	5~20	5~20	5~20
Heating Ambient	Min. - Max.	°C	-20~24	-20~24	-20~24
Water Side	Min. - Max.	°C	20~50	20~50	20~50
Sound Pressure Level	Cooling/Heating	dB(A)	29/ 32	29/ 32	29/ 32
Sound Power Level		dB(A)	42	46	48
Water Flow Rate	Min-Standard	L/min	18/26	32/46	63/90
Water Circuit Piping Diameter	Inlet	inch^,,	1	1	1-1/4
	Outlet	inch^,,	1	1	1-1/4
Refrigerant Type			R410A	R410A	R410A
Gas Side – Connection Type		mm	15.88	15.88	19.05
Liquid Side – Connection Type		mm	9.52	9.52	9.52
Power Supply		Ph / Hz/ V	1/ 50/ 220~240	1/ 50/ 220~240	1/ 50/ 220~240
Odu Compatibility			mRV S

(1) Temp 35°C - LWE 18°C (ST=5°C)
(2) ST/WT 7°C/6°C - TC35°C (STT=5°C)

Dimensions

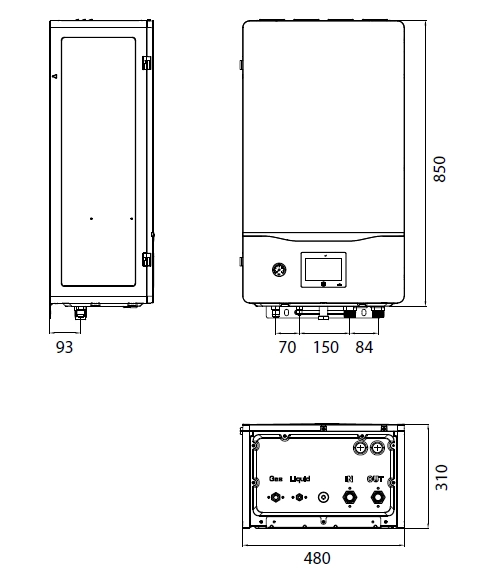

MyCond Hydro box overall dimensions - 1

Dimensions

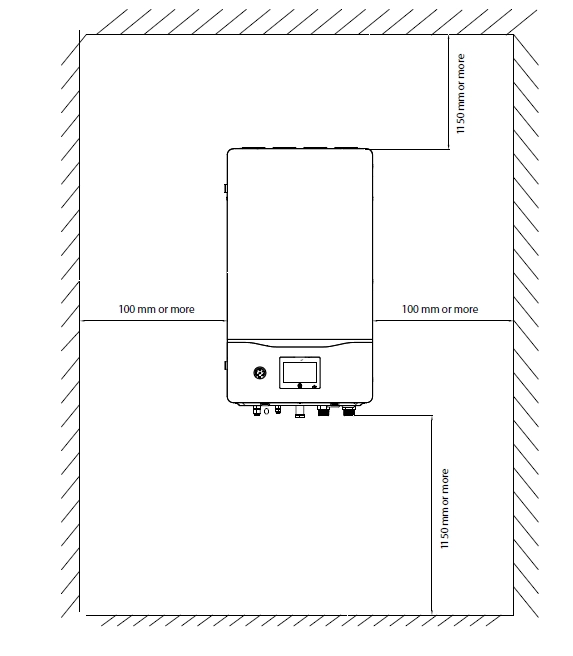

MyCond Hydro box overall dimensions - 2
