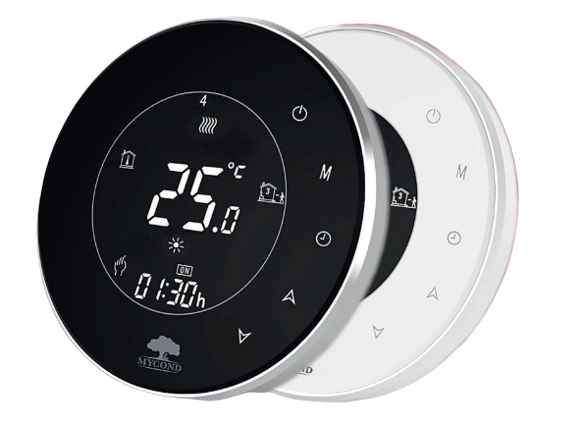

Fan coil thermostat Mycond ORB Fan

The original rounded design will be the highlight of your interior. And the ability to control heating and cooling will make it an indispensable assistant in creating your personal climate. Remote control via Wi-Fi expands the boundaries to infinity

Array

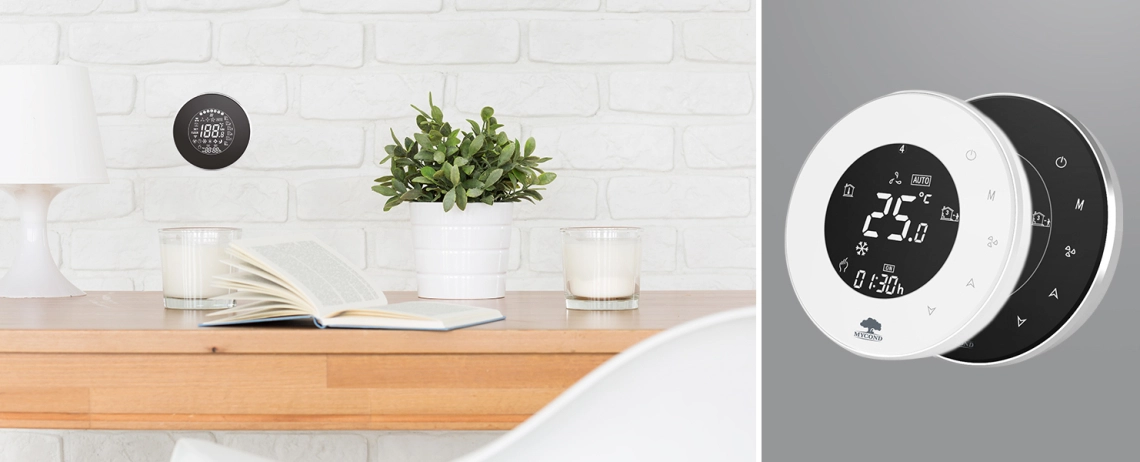

Intelligent wall thermostat with fan coil connectivity displayed.

The user-friendly design of the ORB Fan thermostat allows for easy control of fan coil systems.

Advantages

Touch control
Large display with backlighting
Large font
Temperature adjustment within +5 °C to +35 °C
Programmable mode
Lockable control buttons
Fan control (3 speeds + Auto)
Valve control*
3 operating modes (ventilation, cooling or heating)

Additional modifications :

MODBUS for connection to a building management system or a smart home
Wi-Fi, wireless control via Mycond SmartApp on the smartphone

* 1 or 2 valves for a 2- or 4-pipe system respectively

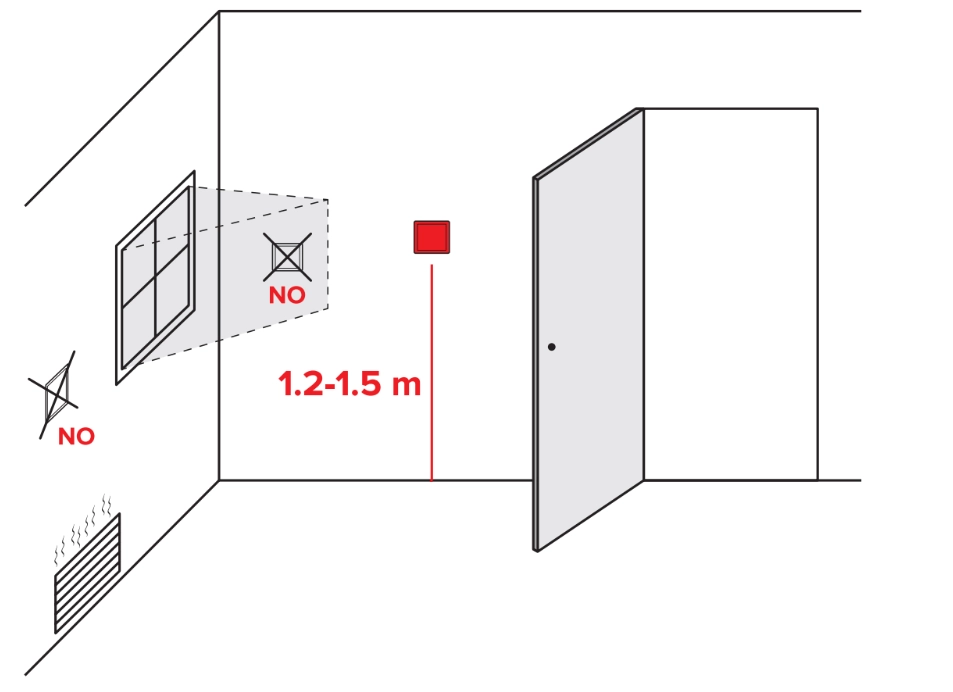

Installation tips

Install the thermostat at about 1.2-1.5 m above the floor in a well-ventilated
area with moderate ambient temperature.

Do not install in locations where the thermostat can be affected by:

Drafts or dead spots behind doors and in corners
Hot or cold air from ducts
Sunlight or radiant heat from appliances
Concealed pipes or chimneys
Unheated/uncooled areas such as an outside wall behind the thermostat

Diagram showing installation tips for Mycond ORB fan coil thermostat.
